Brief introduction
HTGK-V takes high-end IPC as core, built-in 800MHZ high-speed processor, boot just need 10 seconds. Its main feature not only meet the general high-voltage switches dynamic characteristics test on the market to, but also meet Siemens graphite contact switch test , dynamic resistance waveform can be reliably tested graphite contact switch 6 fracture. It is intelligent, multi-function, data accurate, strong anti-interference, simple operation, small size, light weight, beautiful appearance, etc. It applies to a variety of indoor, outdoor dynamic characteristics test for less oil, more oil switches, vacuum switches, and SF6 switches. The biggest difference in this high-voltage switch dynamic characteristics tester that can be configured universal speed sensor (accelerometer).
Products features
1. IPC control.
2. Dynamic resistance waveform can be reliably tested graphite contact switch 6 fracture.
3. Time: 12 contacts' fixed opening time and closing time, in-phase same time, out-phase same time.
4. Springing: closing springing time, springing numbers, springing waveform for each breaker; rebound magnitude for each breaker.
5. Speed: instant opening, closing speed, max speed, speed wave.
6. Range: over-range, overriding range.
7. Current: opening/closing current of opening/closing coil, current value, waveform diagram.
8. Reclose: setting reclose interval time, metal short circuit time, no-current interval time.
9. Action voltage: DC20-250V/10A (rated operating) digital adjustable power circuit breaker, setting opening/ closing coil action voltage, finish the breaker low voltage action test.
10. Universal speed sensor extremely easy to install.
11. Applicable to all types of domestic and foreign SF6 switch, GIS combination of electrical, vacuum switch, oil switch.
12. Switching one time, get all the data and diagram.
13. The host can store more than one million units of test data, real-time clock inside the machine for easy archival storage test date, time.
14. With U-disk interface, can save data directly to the U disk.
15. Big screen, wide temperate, backlight LCD, full display all data and diagram, electronic LCD contrast adjustment, power-off memory.
16. With printer, print all data and diagram.
17. Formulate the analysis software for instant opening, closing speed according to requirement to analyze, it is suitable for measuring speed of any types switches.
Product parametersInput power | 220V±10% | 50Hz±10% |
Atmospheric pressure | 86~106kP | |
Temperature | -10~40ºC | |
Humidity | ≤80%RH | |
Time | 4000.0ms | Resolution: 0.1ms |
Speed | 20.00m/s | Resolution: 0.01m/s |
Range | 800mm | Resolution:0.1mm |
Current | 20A | Resolution: 0.01A |
Internal power | 220V/10A | |
Dimension | 360×280×300mm3 | |
Weight | 10kg |
Common problem
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
3. Is the quality guaranteed?

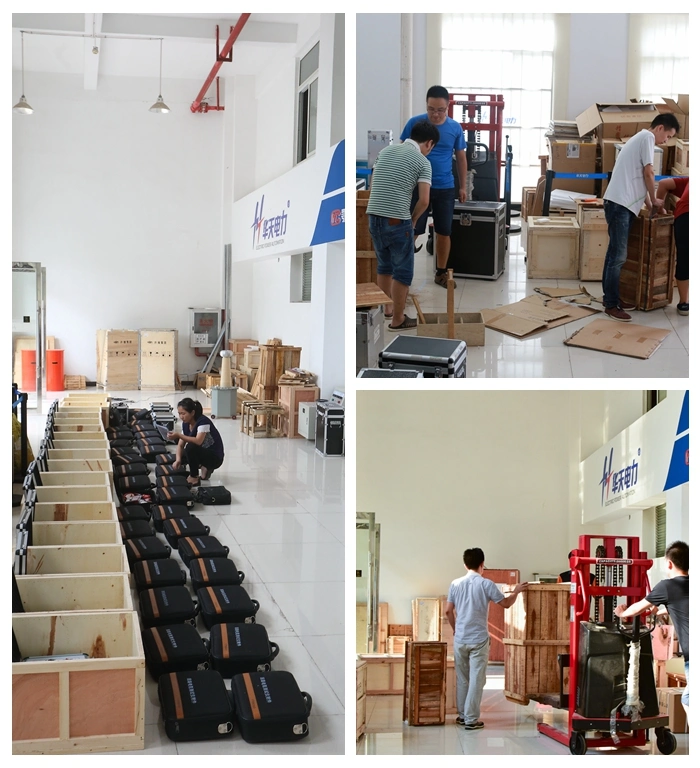

In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What are the after-sales terms?

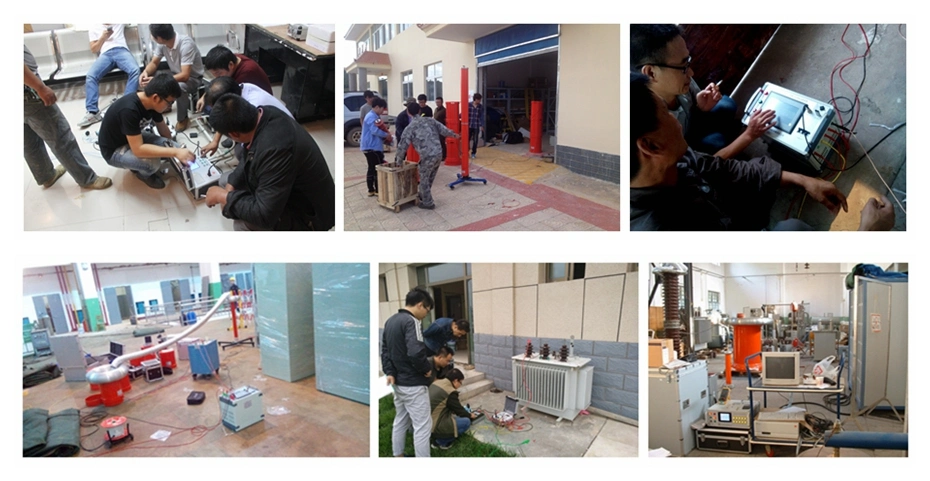

We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
