Portable high-precision substation secondary relay protection test CT Vt analyzer

Product DescriptionDescriptionsCT and PT Tester is the revolutionary testing system for various CTs and PTs according to standards IEC61869-2 (IEC60044-1,60044-6), IEC61869-3(IEC60044-2) and IEEE/ANSI C57.13. The Analyzer can automatically complete the test within seconds by one click of the patented multifunctional rotary mouse

Featured Products

Product Description

Descriptions
CT and PT Tester is the revolutionary testing system for various CTs and PTs according to standards IEC61869-2 (IEC60044-1,60044-6), IEC61869-3(IEC60044-2) and IEEE/ANSI C57.13. The Analyzer can automatically complete the test within seconds by one click of the patented multifunctional rotary mouse. It allows to test the knee-point voltage up to 40kV CTs and PTs on-site in power grids or in manufacturers' production facilities or test labs.

CT and PT Tester CTP-200 is only 9kg(9.84 lbs), which is easy to carry on testing site.



Main Features
1) Able to test Protection CTs, Measuring CTs, TP class CTs and inductive PTs
2) Test excitation characteristic and error curve based on low-frequency measurement principle
3) Measure ratio, polarity, ratio error and phase displacement error based on voltage method
4) Automatic demagnetization of the CT after test.
5) Adopt patented multifunctional rotary mouse to replace the keypad
6) Adopt 5.7 inches LCD screen for display
7) Adopt DSP, ARM and embedded LINUX operation system
8) Both local test and PC remote test available
9) Higher measurement accuracy: 0.05 %
10) Print test results directly by built-in thermal printer
11) Small and light weight (9kg / 19.84 lbs) for easy transport



Application
-CT/PT excitation and saturation test
-Accuracy measurement of ratio and phase angle
-Secondary loop burden measurement
-Winding resistance measurement
-Saturated and non-saturated inductance test
-Transient CT parameters test
-CT/PT polarity test
-CT nameplate guess



Technical Data
○Test Standard: IEC61869-2(IEC60044-1,60044-6), IEC61869-3(IEC60044-2), IEEE/ANSI C57.13
○Maximum Knee Voltage Measurement: 40kV


○Output Range:
voltage: 0~180V(RMS)
current: 0~12A(RMS), 36A(peak value)


○Voltage Measurement Accuracy: ±0.05%
○CT Ratio Measurement:
range:1~30000
accuracy: ±0.05%


PT Ratio Measurement:
range:1~10000
accuracy: ±0.05%


○Phase Measurement:
accuracy: ±2min
resolution: 0.01min


○Secondary Winding Resistance Measurement:
range: 0~300Ω
accuracy: 0.1%±1mΩ


○Burden Measurement:
range: 0~300VA
accuracy: 0.1%±0.1VA


○Memory Capacity: >3000 groups test results


○Power Supply

Nominal Input Voltage

Customized (AC 220V/230V/120V/127V±10%, 1-Phase)

Nominal Frequency

50/60 Hz

Rated Current

10A At 230V / 12A At 115V

Connection

Standard AC Socket (IEC 60320)



○Environmental Conditions

Operation Temperature

0 ... +50 °C (+32 ... +122 °F)

Storage Temperature

-25 ... +70 °C (-13 ... +158 °F)

Humidity Range

Relative Humidity 5 ... 95 %, Non-Condensing

Vibration

IEC 60068-2-6(20m/S2 At 10 ... 150 Hz)



○Miscellaneous

Weight

9kg / 19.84 Lbs

Dimensions (W X H X D, Without Handle)

340×300×150mm(13.39x11.81x5.91 In)

Connection Port

2 USB2.0 Ports, 1 Communication Port



○Safety Standards, Electromagnetic Compatibility

EMC

The Product Adheres To The Electromagnetic Compatibility (EMC) Directive 2004/108/EC(CE Conform)

IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3

Safety

The Product Adheres To The Low Voltage Directive 2006/95/EC(CE Conform).

IEC 61010-1



Ratio error and phase angle error of CT tested by voltage measurement method
Portable High Accuracy for Substation Secondary Relay Protection Test CT Vt Analyzer

Figure1 CT's equivalence principle diagram



CT's equivalence principle is shown as figure1. As we can know from the figure, the main reason of causing ratio error and phase angle error is the error of excitation loss's current Iex and turns ratio Np/Ns. So for 5%, 20%,100%,120% rated current output, if Iex amplitude and phase position and true turns ratio Np/Ns are known, then the ratio error and angle error of CT at this time can be calculated. The tester calculates the ratio error and phase angle error of CT by the measured turns ratio Np/Ns and excitation loss Iex.



Turns Ratio Np/Ns can be got by inputting voltage on the secondary side under no-load condition and test the primary induced voltage. Iex can be got by test the secondary side's excitation characteristics. Because Iex is determined by the induced electromotive force of secondary circuit, Iex amplitude and phase angle can be got from excitation characteristics. When the secondary current and the secondary load are known, Vex value is also can be got by calculation and get Iex value by checking out the excitation characteristics data table.
CT and PT Tester CTP-200P was showed at THE 9TH INTERNATIONAL EXHIBITION ON ELECTRICAL TECHNOLOGY & EQUIPMENT in SECC, Ho Chi Minh City.

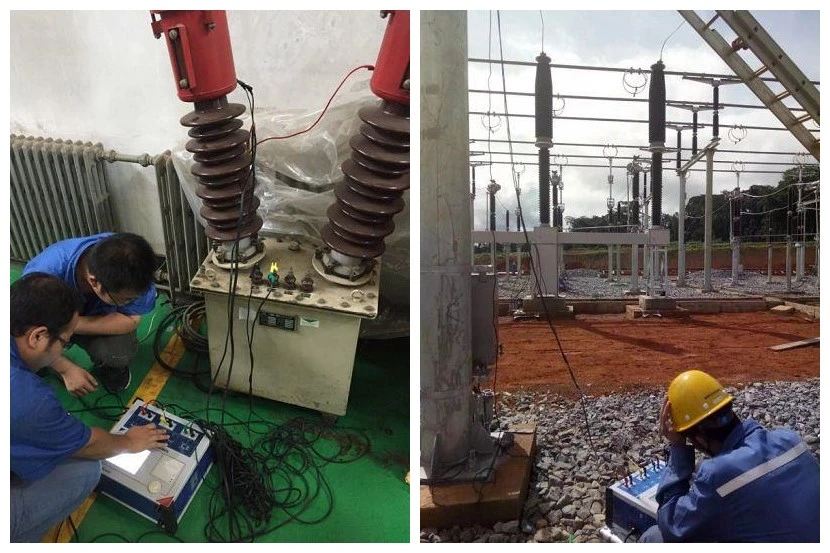

Portable High Accuracy for Substation Secondary Relay Protection Test CT Vt AnalyzerCT and PT Tester CTP-200P is portable and reliable instrument for testing Current Transformers and Potential Transformers indoor or outdoor.
Portable High Accuracy for Substation Secondary Relay Protection Test CT Vt Analyzer

Certifications

CT and PT Tester CTP-200P is calibrated in in the third party laboratory accredited under ISO/IEC 17025. The calibration report is shown as below.
